Obsidian Control Systems

Obsidian Netron DA2410V 24-Port Node

Write a Review
UPC:
810008264461
MPN:
NDR241
Availability:
Please contact us for additional inventory availability.

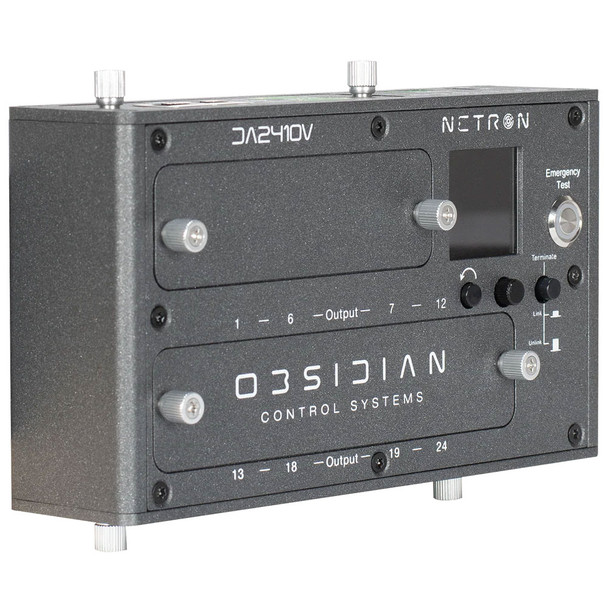

  • Obsidian Netron DA2410V right
  • Obsidian Netron DA2410V front
  • Obsidian Netron DA2410V front with terminal blocks
  • Obsidian Netron DA2410V bottom
  • Obsidian Netron DA2410V bottom with terminal blocks
  • Obsidian Netron DA2410V top
  • Obsidian Netron DA2410V back with DIN rails
  • Obsidian Netron DA2410V back with wall plates
  • Obsidian Netron DA2410V side
  • Obsidian Netron DA2410V terminal blocks included
$587.00
Current Stock: 1

More on the way, place an order today!

Frequently bought together:

Description

The Obsidian Control System's Netron DA2410V is a compact DIN Rail or Wall Mount Ethernet or DMX gateway with 24x 0-10V analog outputs.

Easy to configure from its OLED display, it suports DMX, Art-Net or sACN as the source.

The innovate connector configurations allow the NETRON DA2410V to be configured with screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the device, depending on installer preference or space considerations. Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.

The NETRON DA2410V supports a wide range DC Input from 12-48V.

The NETRON DA2410V is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue, a unique level per channel or set all analog outputs to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.

FEATURES

  • 24x 0-10V 40mA Sink Outputs
  • Screw terminal or IDC connectivity
  • Configurable Top, Bottom and Front ports
  • DMX, RDM, Artnet and sACN support
  • Factory and user presets for plug and play setup
  • 12-48V DC power
  • 1.3" OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Emergency Cue System with test button and contact closure
  • Remote configuration via internal webpage
  • Powder-coated aluminum DIN Rail housing

WHAT'S INCLUDED

  • (2) DIN Rail clamps
  • (2) Wall mount plates
  • 24-port Terminal Block Connection plate
  • (2) Screw Terminal with security screws
  • (2) IDC Connector with security screws

SPECIFICATIONS

MOUNTING

  • DIN Rail
  • Wall-mount

CONNECTIONS

  • Front:
    • Full color 1.3" OLED display
    • Encoder w. Push to Select / Exit Button
    • 24-port Analog connection (Terminal Block) or Cover Plate
    • (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Out or Cover Plate
  • Top:
    • (2) RJ45 Gigabit Ethernet (1x POE) + DMX In/Out or Cover Plate
    • DC In (2pin Terminal Block)
  • Bottom
    • 24-port Analog connection (Terminal Block) or Cover Plate
    • Emergency Contact (3pin Terminal Block, Dry Contact or 12V)

SIZE / WEIGHT

  • Length: 4.7 in. (116 mm)
  • Width: 5.6 in. (143 mm)
  • Height: 2.1 in. (51 mm)
  • Weight:

ELECTRICAL / THERMAL

  • DC 12-48V

APPROVALS

    • cETLus / CE / IP20 / UL924
