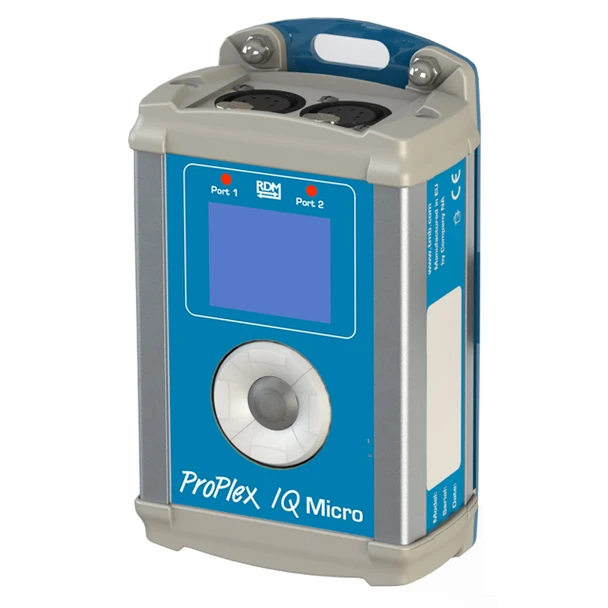

ProPlex IQ Micro 2-Way Portable Mount Ethernet/DMX Node

The ProPlex IQ Micro 2-universe, 2-port bidirectional Ethernet-DMX node packs a lot of merging/converting power in a small package! Convert between Ethernet and 2 universes of DMX. Neutrik connectors are featured and large navigation buttons with easy-to-read LCD makes programming simple, easy, and quick.

The handy Mounting Plate makes installation effortless and the extremely compact unit will fit anywhere. ProPlex IQ products are rugged, intuitive, and quick to configure. Powered by PoE, the IQ Micro is fully RDM functional and interfaces with ProPlex Software.

FEATURES

• Bidirectional, 2-universe, 2-port merging and Ethernet protocol conversion of DMX data (sACN/ArtNet)
• Rugged, extremely compact Micro enclosure with optional mounting plate and strap installs almost anywhere
• Intuitive, simple web interface or front panel control of all basic functions
• RDM functionality for complete system feedback and monitoring
• All Neutrik connectors: XLR and EtherCon

ProPlex IQ Micro LTR Datasheet

SPECIFICATIONS

• Part Number: PPIQC215MCD
• Ethernet Ports: 1
• DMX Ports: 2
• DMX Connectors: Neutrik XLR5 Female (NC5FAV)
• DMX Port Isolation: Optical, up to 1000 V
• Ethernet Connector: Neutrik EtherCON RJ45
• Ethernet Type: 10/100 Base-T
• Network Protocols: ArtNet, sACN (E1.31)
• Additional Features: RDM; HTP merging; easy priority; sACN priority
• Power: 24/48 VDC (PoE In)
• Power Consumption: 2.5 W
• Cooling: Convection
• Operating Temp.: -20 to +40 ºC
• Operating Humidity: 10-85%
• Unit Dimensions
  • With Plate (WxHxD): 5.7 x 3.34 x 2 in. (146 x 84.9 x 51 m
  • Without Plate (WxHxD): 4.9 x 3.34 x 1.875 in. (124.6 x 84.9 x 47.6 mm)
• Weight: 1.05 lbs (0.48 kg)
