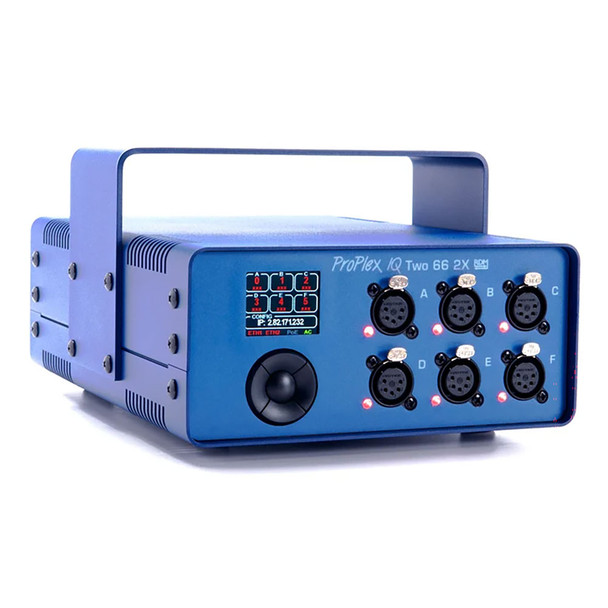

ProPlex IQ Two 66 2x 6-Way Portable Mount Ehternet/DMX Node

PortableMount 6-way Bidirectional ArtNet/sACN-DMX Node with TWO EtherCon Ports and PoE power in.

FEATURES

• High-power processor for glitch-free data conversion, patching and merging of up to six universes
• Powerful yet intuitive feature set, control, management, via on-board LCD, Browser Interface, or ProPlex Software
• Dual EtherCon ports allow very low latency linking of units and, with GBS and EZ-LAN, ring topology for speed and redundancy
• PoE power-in option for convenience or dual-power redundancy
• Merge ArtNet or Streaming ACN from multiple sources
• Full bi-directional RDM functionality. Input or output on any DMX connector
• Rugged “BSH” PortableMount enclosure with removable truss yoke
• Single and Dual RackMount Kits available

ProPlex IQ Two 66 2x LTR Datasheet

SPECIFICATIONS

• Part Number: PPIQB625PR
• Ethernet Ports: 2
• ArtNet/sACN Universes: 6 max.
• DMX Ports: 6
• DMX Connectors: Neutrik XLR5 Female
• DMX Port Isolation: Optical, up to 1000V
• Ethernet Connector: Neutrik EtherCon RJ45
• Network Protocols: ArtNet, sACN (E1.31)
• Power: 100-240V, 50-60 Hz / PoE In (802.3af)
• Power Connector: Neutrik PowerCon NAC3MPA
• Power Consumption: 48 W
• Fuse: 1 A, 250 V
• Operating Temp.: -20º to +40º C
• Unit Dimensions (WxHxD): 8.15 x 5.33 x 10.72 in. (207 x 136 x 273 mm)
• Weight: 9.03 lb (4.1 kg)
