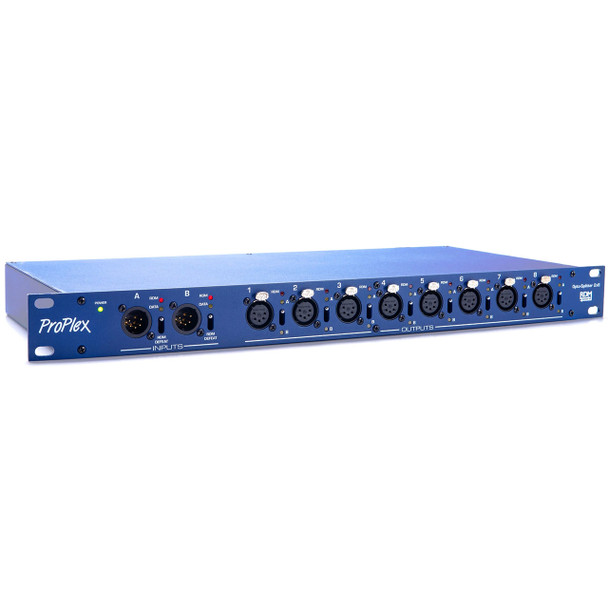

ProPlex Opto-Splitter 2x8 RDM RackMount

The ProPlex Opto-Splitter 2x8 RDM Rack Mount DMX512 optically isolated splitter/repeater. Two DMX512 inputs, each with DMX Thru, individually switchable to up to 8 isolated outputs. RDM defeat switch on each input.

FEATURES

• Two DMX512 inputs individually switchable to up to 8 outputs
• DMX regeneration feature ensures compatibility between DMX devices
• Available with all 5-pin XLR connectors
• RDM version has RDM defeat switch on each input
• Shock-mounted circuitry. Designed for extreme conditions and temperatures
• ProPlex "Blue Box" RackMount enclosure
• Neutrik™ connectors: Locking PowerCON mains and XLR
• Designed and built for working professionals in entertainment production

ProPlex OptoSplitter 2x8 RackMount LTR Datasheet

SPECIFICATIONS

• Part Number: PPDDS285RR
• DMX Input: 2 XLR5 Male
• DMX Thru: 8 XLR5 Female
• DMX Signal: DMX-512A
• RDM: Yes
• Signal Delay: REGENERATION mode: 2μsec
• DMX Isolation: Optical to 1000V
• Power: 100-230 VAC, 50-60 Hz (consumption 15W)
• Mains Connector: Neutrik PowerCON NCA3MPA
• Fuse: 2A, 250V
• Cooling: Convection
• Operating Temperature: -4 to +104 °F (-20 to +40 °C)
• Operating Humidity: 10 - 85%
• Unit Dimensions (WxHxD): 19 x 1.75 x 3.94 in. (482.6 x 44.5 x 100 mm)
• Weight: 3.3 lbs (1.5 kg)
