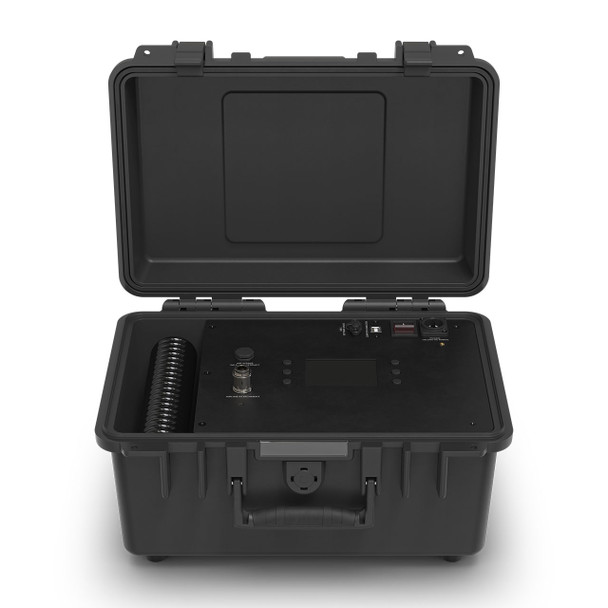

Chauvet Professional IP Tester

The Chauvet Professional IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles. A built-in web server allows for easily connecting to PC computers for creating fixture profiles and storing information collected from tests. IP Tester is a useful tool for testing any CHAUVET Professional IP rated product fitted with Gore valves. Housed in a compact and impact resistant ABS plastic case designed with touring in mind and able to fit in tool and road cases.

FEATURES

• Portable, compact IP testing device capable of both vacuum and pressure testing parameters.
• Pre loaded testing personality files for CHAUVET Professional IP rated products
• Easy to build custom testing profiles
• Built in webserver to easy connection to PC computers for creating fixture profiles and storing information from tests
• USB-C input for easy software upgrades and for storing fixture test data
• USB-B port for easy connection to PC
• Compact and impact resistant ABS plastic case is designed to fit in tool and road cases with touring in mind

WHAT'S INCLUDED

• IP Tester
• Seetronic powerKon IP65 Power Cord to Edison
• USB Cable
• M12 Threaded Brass Nozzle with Push-to-Connector Fitting
• (2) M12 threaded metal plugs

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

• Dimensions: 14.38 x 11 x 7.5 in. (365.25 x 279.4 x 190.5 mm)
• Weight: 9.4 lb (4.3 kg)
• Exterior Color: Black
• Housing Material: Injection molded case

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon
• Power Input: Seetronic Powerkon
• Quick-Release Air Hose Fitting
• Air In/Out Vent
• Data Connection: USB-B Port, USB-C
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• 6 button LCD menu
• Built in webserver for USB connection to PC
• remote information storage over USB-C input

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 25 W, 0.335 A @ 120 V, 60 Hz
• Power and Current: 25 W, 0.214 A @ 208 V, 60 Hz
• Power and Current: 25 W, 0.205 A @ 230 V, 50 Hz
