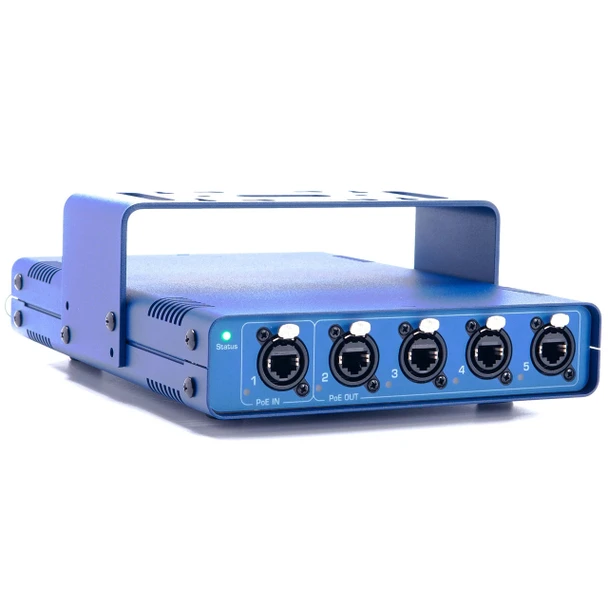

ProPlex GBS Mini PoE 6-Port Portable Mount Switch

The ProPlex Mini Gigabit Switches with PoE. 6 copper ports with tour-grade Neutrik EtherCon connectors.

FEATURES

• Powerful, rugged, compact switches suitable for high volume, multicast, real-time show data
• Super simple switch management via user friendly browser
• Compatible with a wide range of entertainment-specific protocols
• Rugged, tour-ready ProPlex “BSH” Mini PortableMount enclosure
• Shock-mounted components. Purpose-designed ventilation. Peerless reliability.
• Versatile PoE capability. Can be powered by PoE or powered by mains and output PoE on 4 ports.
• 6 copper ports with tour-grade Neutrik EtherCon connectors
• Fibre port option with heavy-duty Neutrik OpticalCon QUAD connectors.
• Complete with rugged, multi-attachment, removeable yoke

ProPlex GBS Mini PoE LTR Datasheet

SPECIFICATIONS

• Part Number: PPGBSPOE006M
• Ethernet Ports: 6 Neutrik EtherCon RJ45
• Optical Ports: None
• Network Protocols sACN, ArtNet, CobraNet, Dante, ETCNet, Ethersound, MA-Net, and more
• Ethernet speed: 10/100/1000 Mbps
• Power-over-Ethernet (PoE)
  • IEEE 802.3af-2003 standard
  • 1x PoE input port, class 0, max power consumption 15.4W.
  • 4x PoE output ports, power budget: 4 x 15.4 W = 61.6 W.
• Power: 100-240 VAC 50-60 Hz or PoE
• Power Connectors: Neutrik PowerCon IN and THRU
• Power Consumption: 80 W max
• Operating Temp: -20 to +40 ºC
• Enclosure: ProPlex BSH Medium
• Unit Dimensions
  • With Yoke (WxHxD): 88 x 3.63 x 10.72 in. (205 x 92.3 x 272.3 mm)
  • Without Yoke (WxHxD): 8 x 1.72 x 10.72 in. (205 x 43.7 x 272.3 mm)
• Weight: 5.6 lbs (2.54 kg)
